Chassis:

Produced by gas welding machines from high resistance steel ST52 meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine.

King Ping:

Produced with wrought iron (42 cr Mo4)Thats high resistance to tension and breaking off compliance with 2’’ SAE/DIN norms and provides easy replacement posibility with screw connections.

Axles:

3 X 16000 kg carriying capacity.  Turkish Mark automatic brake adjustment lever and compliance with european standards. Off drum brake systems.

Front Axles Lifting

Front axle lifting system commanded from inside of the cabinet

Brake System:

Designed according into the european standards Wabco products are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (394x210 mm) axle brakes EBS system. There are two pieces of replecable protective brake sockets.

Rear Axles  30x30 Service emergency bellows.

Suspension System:

“Lider” Brand air or mechanical suspension system  as EU Standarts.

Counterfort:

They are “Lider” brand with double revolutions mechanic pillars with 24 tons carriying capacity

Rear Bumper:

70/221/ AT version rear bumper.

Wheel and Rim:

385/65 R22,5 tyres 6 Units. ( Goodyear or Pirelli ) - 11,75 x 22,5 rim 6 Units.

Mudguard:

6 units single mudguard.

Spare Wheel:

Single saddle type.

Water Tank:

60 lt Cr–Ni water tank produced by stanless stell.

Paint:

Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in Paint Oven.

Electrical equipment:

At side 5  unit lamps.

60, 70, 80 label, at rear park lamps, plate lamp triangle reflector.

2 X 7 pim electric sockets.

Tank Volume:

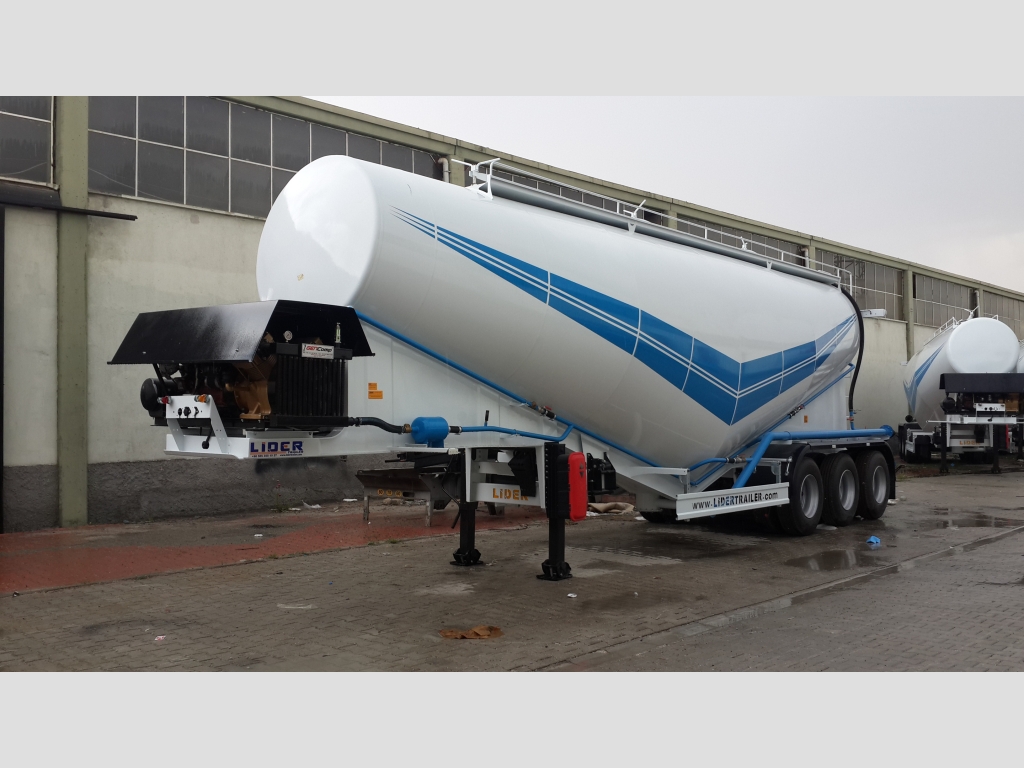

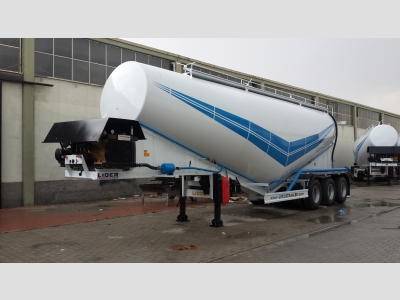

Tank volume 29 M³ capacity.

Tank Meterial:

1unit air compressor (7200 Lt / Minute (Electrical Motor)

Unloding Time: 20 Minute

- Length: 9.000 mm-12.000 mm

- Width: 2550 mm

- Working Pressure: 2 BAR.

- Test pressure: 2,6 BAR.

- The Body is in ‘’V’’ type.

- Silobas body is made of 4 mm thickness. S

Compressor:

-3 heads, 8m3/minute, with flow rate, piston, electric motor

Tank Equipment:

Discharcing System:

Safety Valve:

Accosseries:

The tank is filled with air in 2 bars. It is discharged from 4” ball valve at the ground aith the aid of vibration hoses on the ground.

- 1.5 m3/min (in the sufficient air pressure).

It limits the pressure inside of the tank with 2 bars

- 2 pieces single covered, manhole resistant to test pressure.

- 1 piece air pressure monometer.

- Imported hose system having internal discharging channel that provides fluidity.

- 1 piece safety valve adjusted to 2,5 bar.

- 1 piece ball jet air valve that accelerates discharging.

- 1 piece tool kit box (at the body).

- 1 piece nonskid ground walking platform.

- 1 piece stair from rear existing.

- 2 pieces PVC carrier for discharging hoses.

- Plastic mudguard covering rear axle group.

- 1 piece tool kit box made of sheet.

- 1 piece discharge valve box made of sheet .

- Control Panel (Check – pass, air meter, ramp lever)

- Plastic water tank.

- Roller or basket spare tire carrier.

The above features are standards. The features can change according to customer’s request.
